OpenShift工作坊

Target

A simple nodejs application
Add mongodb to the application
CI/CD for the application
Logging, Monitoring, Debugging

A simple nodejs application

Introduction

In this section, We are going to create a nodejs project with mongodb in OpenShift. We assume that you have done all the preparation work listed in the invitation email of this workshop. And there’re some additional steps to get yourself ready.

Preparation

Install oc in your mac:
1
2
3
brew update
brew install openshift-cli
oc version # the version should be oc v1.5.1+7b451fc
You can also download it’s here: https://github.com/openshift/origin/releases/download/v1.5.1/openshift-origin-client-tools-v1.5.1-7b451fc-mac.zip
fork the demo project to your own github account and get the repository url:

https://github.com/<your-github-name>/nodejs-ex.git
clone code

git clone https://github.com/<your-github-name>/nodejs-ex.git
clone configuration files

git clone https://github.com/gmlove/openshift-workshop.git

Files in this repo will be used later.
log on to OpenShift web console

In browser, navigate to https://13.228.41.255:8443 and login with any username and password you’d like to use. OpenShift will create that account for you.

oc login https://13.228.41.255:8443 and input your username and password:

Authentication required for https://13.228.41.255:8443 (openshift)

Username:

Password:
check status

oc status

You don’t have any projects. You can try to create a new project, by running

oc new-project
check project

oc project

No project has been set. Pass a project name to make that the default.

Create project

oc new-project <your-project-name>

Create applicatioin

create a new application with your own git repository url

oc new-app https://github.com/<your-github-name>/nodejs-ex.git

you can specify the application name with a parameter --name <application-name>

Create route

expose service

oc expose service/nodejs-ex
get route url

oc get route

your route url should look like this:

nodejs-ex-<your-project-name>.13.228.41.255.xip.io
check out the url in web browser you’ll see the welcome page

Build & deploy

build

oc start-build nodejs-ex

A build will be triggered automatically once the application is created successfully.
deploy

oc deploy --latest dc/nodejs-ex

A deployment will be triggered automatically when a build is finished successfully.

Add Webhook

Copy webhook url

In OpenShift web console, go to Builds -> click <your-build-config-name> -> switch to Configuraton tab ->
copy the url on the right of GitHub Webhook URL:
Config Webhook in github
- Go to web browser with url: https://github.com/<your-github-name>/nodejs-ex.git
- Switch to Settings tab below the project name
- Click Webhooks item in left menu panel and then Click Add Webhook button
- Paste the webhook URL in field Payload URL, select application/json in Content type field, click disable ssl verification
- Click Add webhook at the bottom and you’ll return to previous page
- Github will test the webhook automatically, if succeed, it will place a green mark before the url.
- done
Vefiry Webhook
- modify code and commit your changes

  modify <code-dir>/nodejs-ex/views/index.html line 219

  Welcome to your Node.js to This is my awesome Node.js

  push your changes to github
- check your changes in web browser

  in OpenShift web console you’ll see a build & deployment is triggered automatically

  you’ll see the tilte of the page changed from Welcome to your Node.js to This is my awesome Node.js afterh the app is re-deployed.

Rollback

rollback to the last successful deployment

oc rollback dc/nodejs-ex or oc rollout undo dc/nodejs-ex

you’ll get the following messages:

Warning: the following images triggers were disabled: nodejs-ex:latest

You can re-enable them with: oc set triggers dc/nodejs-ex --auto

The message means after a build finished, OpenShift will no longer trigger an automatic deployment. You can re-enable it use the command given in the message if you would like to.

You can also rollback to a specified deployment with the following command:

oc rollout undo dc/nodejs-ex --to-revision=1 or oc rollback nodejs-ex --to-version=1

Scale up/down

scale manually

scale up to 2 pods

oc scale dc/nodejs-ex --replicas=2

now you can scale down to 1 pod

oc scale dc/nodejs-ex --replicas=1

auto scaling

edit DeployConfig in web console

Applications -> Deployment -> <your-deploy-config-name> -> Action menu -> Edit YAML

replace resources:{} with the following content:
1
2
3
4
5
resources:
limits:
cpu: 100m
requests:
cpu: 100m
and the yaml script will looks like this:

spec:
  containers:
    - name: nodejs-ex
      image: >-
        172.30.1.1:5000/leojiangproject/nodejs-ex@sha256:eac764a3e2366e929dd00e8558d9433d3f81bf590e09340527a8e839cf0fe551
      ports:
        - containerPort: 8080
          protocol: TCP
      resources:
        limits:
          cpu: 100m
        requests:
          cpu: 100m
      terminationMessagePath: /dev/termination-log
      imagePullPolicy: Always
  restartPolicy: Always
  terminationGracePeriodSeconds: 30
  dnsPolicy: ClusterFirst
  securityContext: {}

Back to overview in web console, you’ll see an error at the top, click on the url and trust the site.

Now you can see metrics in overview panel.

config autoscaler with command

oc autoscale dc/nodejs-ex --min 1 --max 10 --cpu-percent=10
verify

send batch request with command: ab -n 1000 -c 100 http://<route-of-your-application>

Wait and you’ll see the pod number is scaled to 2

Add mongodb to the application

Deploy a database with persistent volume

cd to the directory where you downloaded the configuration files earlier.
crete secret

oc create -f mongodb-secrets.yaml
check secret

oc describe secret nodejs-ex
create persistent volume claim

oc create -f mongodb-pvc.yaml
check persistent volume claim

oc get pvc
create mongodb deployment config

oc create -f mongodb-deploy-config.yaml
create a mongodb service

oc create -f mongodb-service.yaml
trigger a deployment for mongodb (if not triggered automatically)

oc rollout latest dc/mongodb

Connect nodejs application to database

change deployment config and add environment parameters

In web console, go to Applications -> Deployment -> <your-deploy-config-name> -> Action menu -> Edit YAML

add the following content under caontaners tag:

env:
  - name: DATABASE_SERVICE_NAME
    value: mongodb
  - name: MONGODB_USER
    valueFrom:
      secretKeyRef:
        key: database-user
        name: nodejs-ex
  - name: MONGODB_PASSWORD
    valueFrom:
      secretKeyRef:
        key: database-password
        name: nodejs-ex
  - name: MONGODB_DATABASE
    value: sampledb
  - name: MONGODB_ADMIN_PASSWORD
    valueFrom:
      secretKeyRef:
        key: database-admin-password
        name: nodejs-ex

the resulting yaml script will looks like this:

spec:
  containers:
    - name: nodejs-ex
      env:
        - name: DATABASE_SERVICE_NAME
          value: mongodb
        - name: MONGODB_USER
          valueFrom:
            secretKeyRef:
              key: database-user
              name: nodejs-ex
        - name: MONGODB_PASSWORD
          valueFrom:
            secretKeyRef:
              key: database-password
              name: nodejs-ex
        - name: MONGODB_DATABASE
          value: sampledb
        - name: MONGODB_ADMIN_PASSWORD
          valueFrom:
            secretKeyRef:
              key: database-admin-password
              name: nodejs-ex

trigger a deployment for nodejs-ex

oc rollout latest dc/nodejs-ex
check

In you browser, open the application with url nodejs-ex-testproject.13.228.41.255.xip.io, and check the Page view count in the web page, it should be counting.

CI/CD for the application

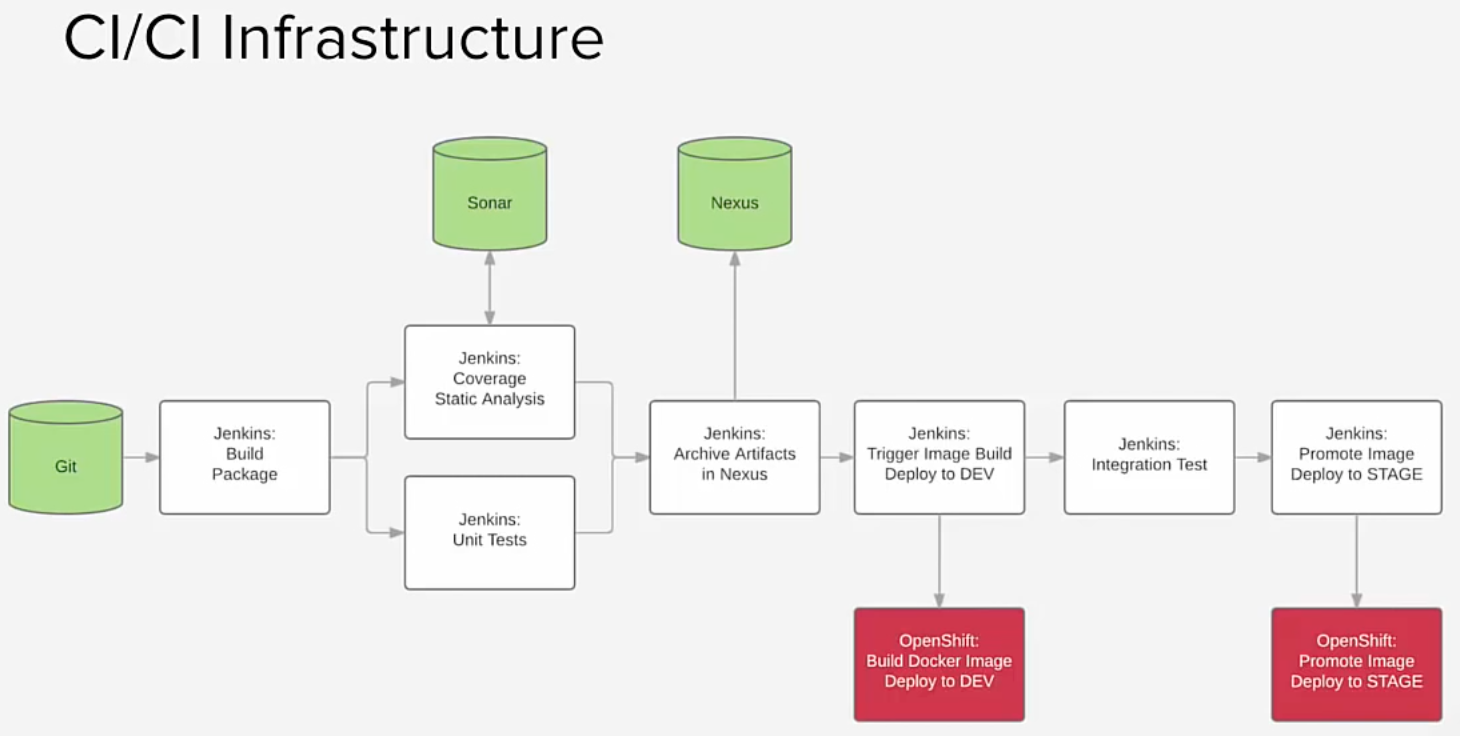

Several ways to integrate pipeline:

Keep using the original pipeline and artifact repository. Manage your pipeline outside of openshift world. When you need to deploy to an environment, you can trigger a build in openshift to grab your artifact and build an image and deploy it to openshift.
Use openshift integrated Jenkins as your pipeline. (heavily customized, with openshift plugin and k8s plugin installed.)

Integrate Jenkins with the application

Create a pipeline build config

Create a file named nodejs-ex-pipeline.yaml with content (already created for you):

kind: "BuildConfig"
apiVersion: "v1"
metadata:
  name: "nodejs-ex-pipeline"
spec:
  strategy:
    jenkinsPipelineStrategy:
      jenkinsfile: "node('nodejs') {\n  stage 'build'\n  openshiftBuild(buildConfig: 'nodejs-ex', showBuildLogs: 'true')\n  stage 'deploy'\n  openshiftDeploy(deploymentConfig: 'nodejs-ex')\n}\n"

To create a pipeline, run:
oc create -f nodejs-ex-pipeline.yaml

Openshift will add the resources below to the project:

route routes/jenkins
services svc/jenkins svc/jenkins

Run oc status to get your dns of the jenkins application. Then you can open it in your browser and perform an oauth login with openshift credentials.
Trigger a build manually and you can check logs from jenkins. You can also find what is openshift doing by watch oc get all
- Openshift creates a slave based on the node being used, here it’s nodejs
- Run the build in that slave
- For our simple example, the pipeline has two steps: trigger a build(works just like oc start-build bc/nodejs-ex), and then trigger a deployment

Multiple environment management

In openshift you define several resources (API Objects) and you can start an environment. So multi environment means multiple similar resource sets. To manage multiple environment, you have many options, such as:

Via labels and unique naming within a single project
Via distinct projects within a cluster
Via distinct clusters

Consider your situation in your organization and choose one properly. We’ll try the second one as an example and create a sys region for the application. We’ll develop a way to share the image created in the project (can be called as dev project).

Spend some time thinking about which resources you will need for another environment (ImageStream DeploymentConfig Service Route PersistentVolumeClaim)

Tag all the resources to export

oc label dc/mongodb promotion=nodejs-ex
oc label dc/nodejs-ex promotion=nodejs-ex
oc label svc/nodejs-ex promotion=nodejs-ex
oc label svc/mongodb promotion=nodejs-ex
oc label routes/nodejs-ex promotion=nodejs-ex
oc label pvc/mongodb promotion=nodejs-ex
oc label is/nodejs-ex promotion=nodejs-ex
oc label secret/nodejs-ex promotion=nodejs-ex

Export those resources

oc export dc,svc,routes,pvc,is,secret -l promotion=nodejs-ex -o yaml > exported-for-promotion.yaml
Open the exported file and do the below to make it portable to sys environment:
- Remove image hash tag
- Replace all string test1 to test1-sys and we’re creating a project named test1-sys
- Remove annotations volumeName status creationTimestamp from PersistentVolumeClaim
Create a new project by oc new-project test1-sys
Create resources by oc create -f exported-for-promotion.yaml
Tag an image from test1

oc tag test1/nodejs-ex:latest nodejs-ex:latest
After that you can trigger a deployment, and after it succeeded, you will be able to open the application in sys environment
Try create a template for these resources and then you can create any new environment with one command

Logging, Monitoring, Debugging

Logging aggregation

EFK solution, check a video here
Start the cluster with logging and metrics installed:

oc cluster up --logging --metrics

There is a bug for logging currently: https://bugzilla.redhat.com/show_bug.cgi?id=1410694

Monitoring solutions

Prometheus/zabbix/hawk: https://github.com/openshift/openshift-tools/tree/stg/openshift_tools/monitoring

An example to setup prometheus and grafana: https://github.com/debianmaster/openshift-examples/tree/master/promethus
We created a monitor service already: http://grafana-openshift-infra.13.228.41.255.xip.io (admin:admin)
dynatrace/coscale/sysdig/appdynamics

Debugging

To monitor the change of all resources: watch oc get all
Check logs of pods: oc logs po/nodejs-ex-1-0s5sl
Check events: oc get event
Login to container: oc rsh po/nodejs-ex-1-0s5sl
